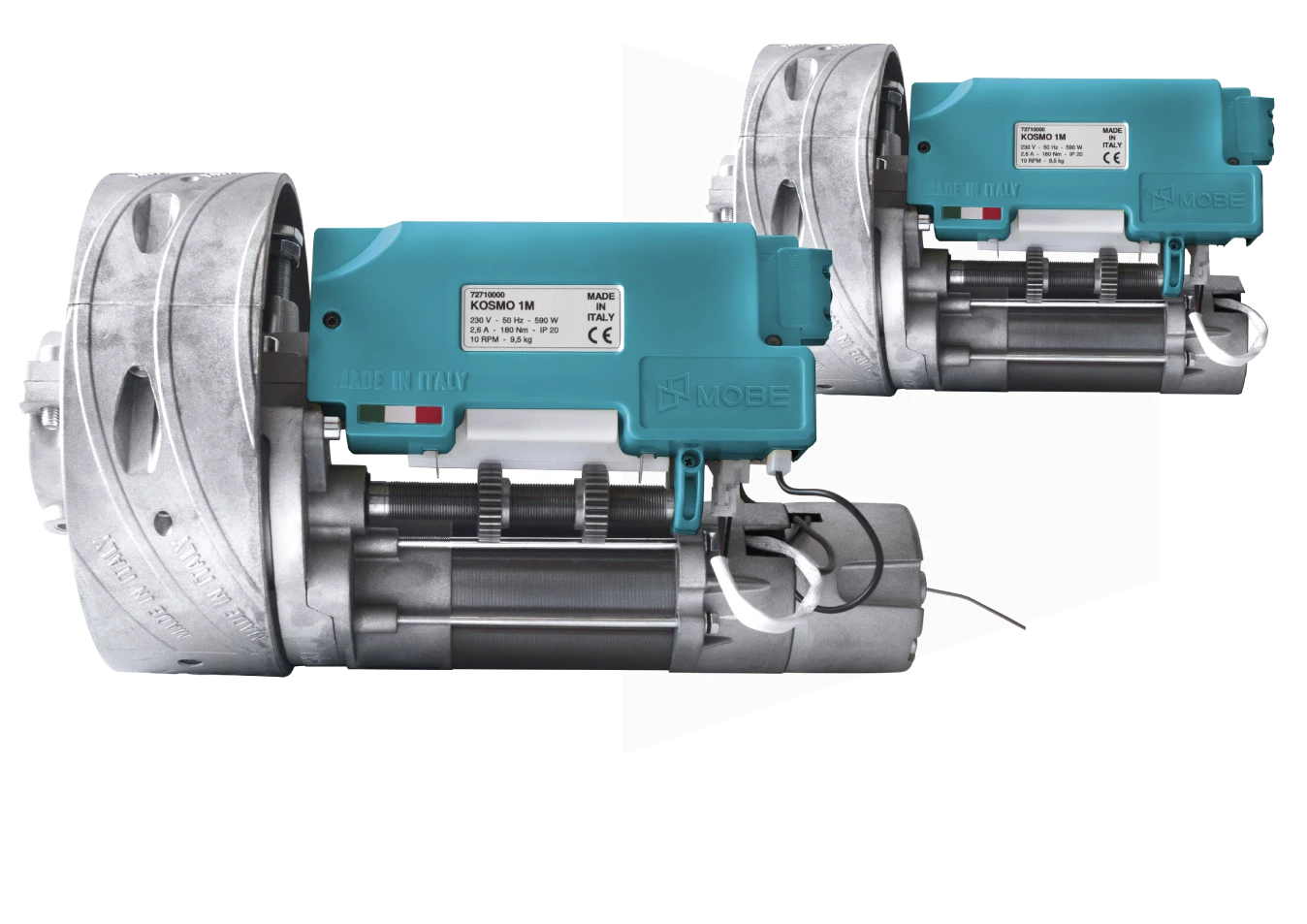

KOSMO 1M

Versatile, robust and compact motor. The definitive solution for spring-balanced rolling shutters for residential use.

simplified assembly

quick manual release

can be installed on existing rolling shutters

with and without electrobrake

APPLICATIONS

spring-balanced
rolling shutters

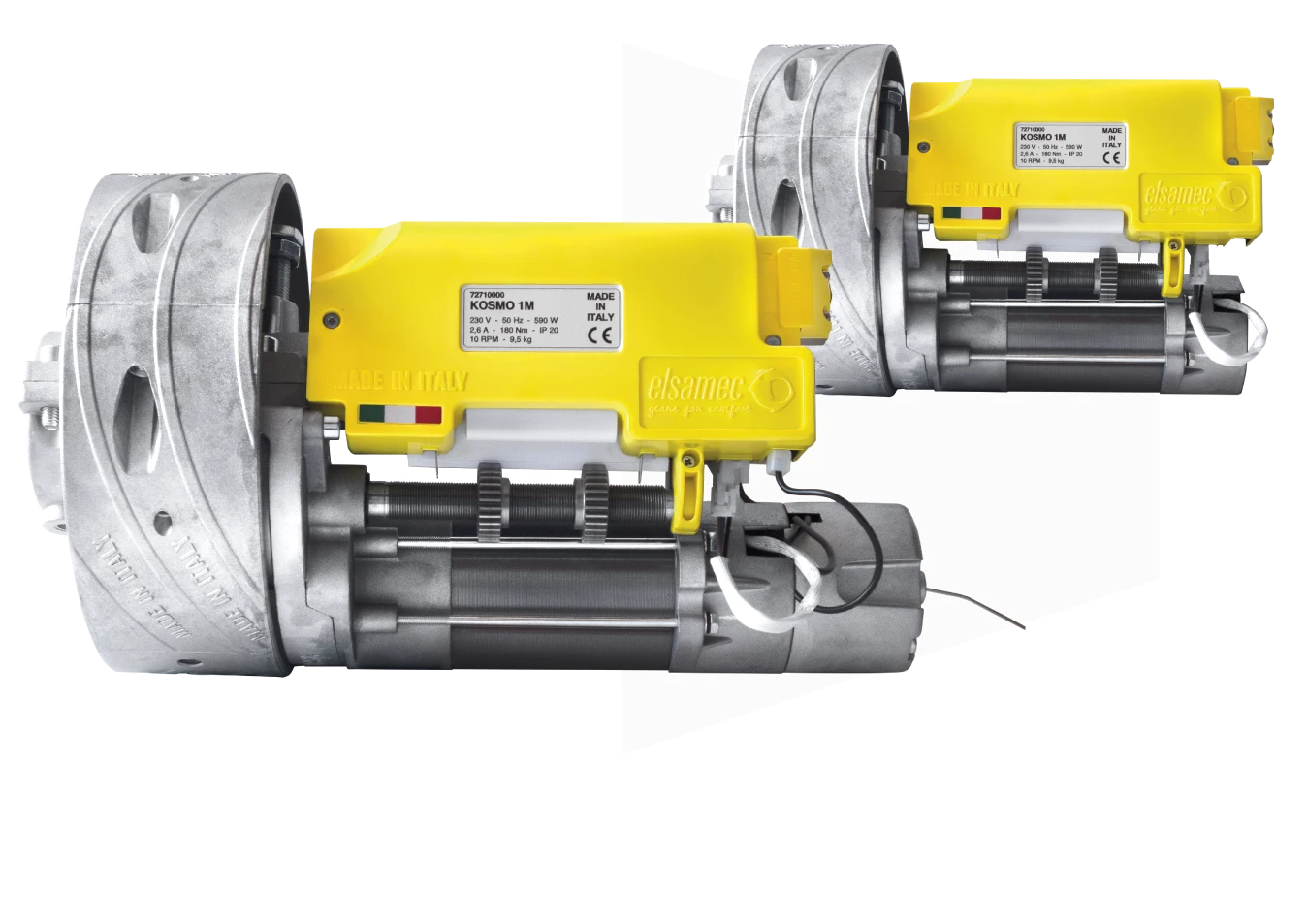

Also available under the Elsamec brand Also available under the Elsamec brand

Elsamec MOBE

MOBE SOLUTIONS

All the power of simplicity.

An advanced design simplifies every stage of installation, from limit switch adjustment to motor release, for automation that is reliable and easy to manage.

enjoy

Versions

KOSMO 1M with electrobrake

code 72710000

KOSMO 1M without electrobrake

code 72760000

The version with electrobrake includes an internal release. Both versions are supplied with a Ø 220 expander and a Ø 60 to Ø 48 reduction.

Request the technical data sheet

Dimensions

Technical specifications

Ø Rolling shutter shaft

60/48 mm

Ø Balancing springs

200/220 mm

Output torque

180 Nm

Lifting force

180/170 kg

Current draw

2.6 A

Power

590 W

Power supply voltage

230 (50/60Hz)

Speed

10 RPM

Protection rating

IP20

MOBE is Italian,
100%.

Our quality standards are always at the highest levels. We dedicate all the necessary care to engineering and design to guarantee reliable and high-performing products.
